Бренд:RightWay
Большой диапазон расширения до 0,6 мм.
Принцип двойного угла позволяет быстро загружать/выгружать компоненты.
Большая удерживающая способность за счет равномерного приложения давления по всей длине рукава.
Гарантированная точность 0,015мм.
|

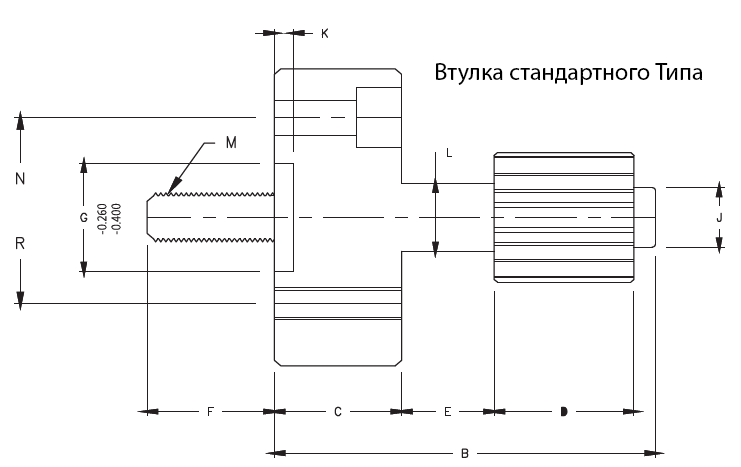

Модель |
3A1 | 2C1 | 1C1 | 18C1 | 4C1 | 5C1 | 6C1 | 7C1 | 8C1 |
|---|---|---|---|---|---|---|---|---|---|
|
A
（ Dia）
|
Min:12.5 Max:16.0 |
Min:16.0 Max:22.0 |
Min:22.0 Max:28.5 |
Min:28.5 Max:41.0 |
Min:41.0 Max:63.5 |
Min:63.5 Max:76.2 |
Min:76.2 Max:89.0 |
Min:89.0 Max:130.0 |
Min:130.0 Max:178.0 |
| B | 60 | 66 | 72 | 79 | 84 | 109 | 118 | 133 | 153 |
| C | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 30 | 30 |
| D | 22 | 27 | 32 | 38 | 43 | 51 | 57 | 63.5 | 79.5 |
| E | 14.6 | 15 | 15.5 | 15.3 | 14.8 | 25.3 | 24.7 | 25.2 | 24.6 |
| F | 20 | 22 | 30 | 31 | 36 | 36 | 37 | 47 | 22 |
| G | 40 | 40 | 40 | 40 | 40 | 60 | 60 | 100 | 100 |
| H | 75 | 75 | 75 | 75 | 75 | 120 | 120 | 180 | 180 |
| J | 11 | 15 | 20 | 26.5 | 37.5 | 55 | 74.5 | 86.5 | 124 |
| K | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| L | 12.6 | 14.1 | 20.7 | 26.3 | 37 | 57.3 | 71.1 | 84.1 | 123 |
| M | M4 | M8 | M8 | M10 | M12 | M20 | M20 | M24 | M36 |
|
N |
Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø94-M10 | Ø94-M10 | Ø150-M12 | Ø150-M12 |
| R | Ø28-M4 | Ø28-M4 | Ø58-M6 | Ø58-M6 | Ø58-M6 | Ø94-M8 | Ø94-M8 | Ø150-M10 | Ø150-M10 |
|
Тяговое усилие (кгс)
|
700 | 1000 | 1200 | 1800 | 2300 | 2800 | 3200 | 3700 | 5500 |
|

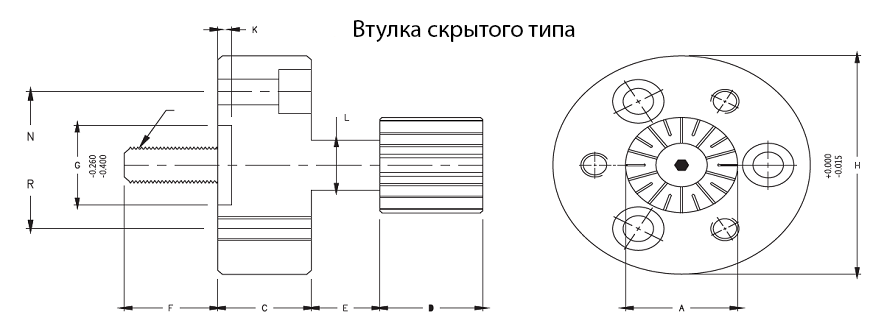

Тип смыва |
3A2 | 2C2 | 1C2 | 18C2 | 4C2 | 5C2 | 6C2 | 7C2 | 8C2 |
|---|---|---|---|---|---|---|---|---|---|
| A |
Min:16. Max:22.0 |
Min:22.0 Max:28.5 |
Min:28.5 Max:40.0 |
Min:40.0 Max:51.0 |
Min:51.0 Max:73.0 |
Min:73.0 Max:89.0 |
Min:89.0 Max:102.0 |
Min:101.0 Max:143.0 |
Min:143.0 Max:178.0 |
| C | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 30 | 30 |
| D | 26 | 32 | 38 | 45 | 50 | 60 | 69 | 78.5 | 99.5 |
| E | 14.6 | 15 | 15.5 | 15.3 | 14.8 | 25.3 | 24.7 | 25.2 | 24.6 |
| F | 20 | 22 | 30 | 31 | 36 | 36 | 37 | 47 | 22 |
| G | 40 | 40 | 40 | 40 | 40 | 60 | 60 | 100 | 100 |
| H | 75 | 75 | 75 | 75 | 75 | 120 | 120 | 180 | 180 |
| J | 11 | 15 | 20 | 26.5 | 37.5 | 55 | 74.5 | 86.5 | 124 |
| K | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| L | 12.6 | 14.1 | 20.7 | 26.3 | 37 | 57.3 | 71.1 | 84.1 | 123 |
|
M |
M4 | M8 | M8 | M10 | M12 | M20 | M20 | M24 | M36 |
|
N (Screw) |
Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø58-M8 | Ø94-M10 | Ø94-M10 | Ø150-M12 | Ø150-M12 |
|
R |
Ø28-M4 | Ø28-M4 | Ø58-M6 | Ø58-M6 | Ø58-M6 | Ø94-M8 | Ø94-M8 | Ø150-M10 | Ø150-M10 |
| Тяговое усилие (кгс) | 700 | 1000 | 1200 | 1800 | 2300 | 2800 | 3200 | 3700 | 5500 |
